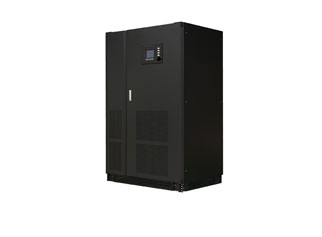

PC Mega Series -- 3IN/3OUT

PC Mega Series UPS Provide maximum protection and power quality for any type of load.
This series UPS is fully digital controlled, armed with several DSP, MCU, CPLD, can parallel up to 8 units for redundancy or capacity, is truly a high quality, innovational solutions to protect your business from power problems.

Environment friendly, high efficiency and high reliability provides the lowest Cost

The entire PC Mega range is suited for use in the broadest spectrum of applications; thanks to the flexibility of configuration, accessories and options available, it is suited for powering capacitive loads such as blade servers, etc.



1

Featurers:-

Advanced SCR rectifier and IGBT inverter control technology, true online double conversion topology, three phase in three phase out, 380/400/415V, 50/60Hz compatible.

Super wide input voltage/frequency range, adapt to harsh utility environments.

Higher overload capacity and output short-tolerant ability

Input power factor up to 0.95 with input filter options, input THDI<4.5%.

Output power factor 0.9, brings 12.5% more power than traditional UPS.

Intelligent self diagnosis, mass memory to record operation log.

Intelligent parallel and parallel ECO Mode.

Super overload capacity and output short-tolerant ability, maximize protect load even under abnormal conditions.

Advanced intelligent battery management, self diagnose technology, extend battery life. Redundant control power, increase even higher system reliability.
